U. S. Department of Health and Human
Public Health Service
Food and Drug
2001 Food Code
NOTE: Annex 5 is currently being reviewed and revised to
reflect FDA's current thinking. The information contained herein is likely to
change when the next Food Code is issued.
2. HACCP PRINCIPLES
6. OTHER SOURCES OF HACCP
HACCP (Hazard Analysis and Critical Control Point) is a systematic approach
in identifying, evaluating and controlling food safety hazards. Food safety
hazards are biological, chemical or physical agents that are reasonably likely
to cause illness or injury int he absence of their control. A HACCP system is a
preventive system of hazard control rather than a reactive one. HACCP systems
are designed to prevent the occurrence of potential food safety problems. This
is achieved by assessing the inherent hazards attributable to a product or a
process, determining the necessary steps that will control the identified
hazards, and implementing active managerial control practices to ensure that the
hazards are eliminated or minimized.
Essentially, HACCP is a system that identifies and monitors specific
foodborne hazards - biological, chemical, or physical properties - that can
adversely affect the safety of the food product. This hazard analysis serves as
the basis for establishing critical control points (CCPs). CCPs identify those
points in the process that must be controlled to ensure the safety of the food.
Further, critical limits are established that document the appropriate
parameters that must be met at each CCP. Monitoring and verification steps are the system, again, to ensure that potential hazards are
controlled. The hazard analysis, critical control points, critical limits, and
monitoring and verification steps are documented in a HACCP plan. Seven
principles have been developed which provide guidance on the development of an
effective HACCP plan.
HACCP represents an important food protection tool supported by Standard
Operating Procedures, employee training and other prerequisite programs that
small independent businesses as well as national companies can implement to
achieve active managerial control of hazards associated with foods. Employee
training is key to successful implementation. Employees must learn which control
points are critical in an operation and what the critical limits are at these
points, for each preparation step they perform. Establishment management must
also follow through by routinely monitoring the food operation to verify that
employees are keeping the process under control by complying with the critical
Local jurisdictions can effectively promote the industry's use of HACCP and
apply the concepts during inspections. The implementation of HACCP continues to
evolve as hazards and their control measures are more clearly defined. To meet
the challenges presented by advances in food research, product development, and
their impact at retail, regulatory personnel must keep themselves informed. Food
protection publications issued by the food industry, professional organizations,
and other groups and continuing education programs can be particularly helpful
in providing an understanding of food operations and how the application of
HACCP can bring a focus to food safety that traditional inspection methods have
FDA has issued guidance to industry in voluntarily applying HACCP principles
in food establishments.
This Guide recognizes that there are differences between using a HACCP plan in
food manufacturing plants. By incorporating the seven principles of HACCP, a
good set of Standard Operating Procedures, and using a process approach, this
Guide sets up a framework for the retail food industry to develop and implement
a sound food safety management system. The Agency recognizes that this document
has areas that need to be further clarified, developed with broader input, and
based on industry's experiences with the practicalities of integrating the HACCP
approach in their operations. This Guide will continue to evolve and improve.
FDA has also issued the guidance document. Program
Standard 3 addresses the regulatory program's use of HACCP principles at retail.
Many terms are used in discussion of HACCP that must be clearly understood to
effectively develop and implement a plan. The following definitions are provided
- (1) Acceptable level means the presence of a hazard which does not
pose the likelihood of causing an unacceptable health risk.
- (2) Control point means any point in a specific food system at
which loss of control does not lead to an unacceptable health risk.
- (3) Critical control point, as defined in the Food Code, means a
point at which loss of control may result in an unacceptable health
- (4) Critical limit, as defined in the Food Code, means the maximum
or minimum value to which a physical, biological, or chemical parameter must
be controlled at a critical control point to minimize the risk that the
identified food safety hazard may occur.
- (5) Deviation means failure to meet a required critical limit for a
critical control point.
- (6) HACCP plan, as defined in the Food Code, means a written
document that delineates the formal procedures for following the HACCP
principles developed by The National Advisory Committee on Microbiological
Criteria for Foods.
- (7) Hazard, as defined in the Food Code, means a biological,
chemical, or physical property that may cause an unacceptable consumer health
- (8) Monitoring means a planned sequence of observations or
measurements of critical limits designed to produce an accurate record and
intended to ensure that the critical limit maintains product safety.
Continuous monitoring means an uninterrupted record of data.
- (9) Preventive measure means an action to exclude, destroy,
eliminate, or reduce a hazard and prevent recontamination through effective
- (10) Risk means an estimate of the likely occurrence of a
- (11) Sensitive ingredient means any ingredient historically
associated with a known microbiological hazard that causes or contributes to
production of a potentially hazardous food as defined in the Food
- (12) Verification means methods, procedures, and tests used to
determine if the HACCP system in use is in compliance with the HACCP
The application of HACCP to food production was pioneered by the Pillsbury
Company with the cooperation and participation of the National Aeronautic and
Space Administration (NASA), Natick Laboratories of the U.S. Army, and the U.S.
Air Force Space Laboratory Project Group. Application of the system in the early
1960's created food for the United State's space program that approached 100%
assurance against contamination by bacterial and viral pathogens, toxins, and
chemical or physical hazards that could cause illness or injury to astronauts.
HACCP replaced end-product testing to provide food safety assurance and provided
a preventive system for producing safe food that had universal application.
In the succeeding years, the HACCP system has been recognized worldwide as an
effective system of controls. The system has undergone considerable analysis,
refinement, and testing and is widely accepted in the United States and
(C) Advantages of HACCP
FDA is recommending the implementation of HACCP in food establishments
because it is a system of preventive controls that is the most effective and
efficient way to ensure that food products are safe. A HACCP system will
emphasize the industry's role in continuous problem solving and prevention
rather than relying solely on periodic facility inspections by regulatory
HACCP offers two additional benefits over conventional inspection techniques.
First, it clearly identifies the food establishment as the final party
responsible for ensuring the safety of the food it produces. HACCP requires the
food establishment to analyze its preparation methods in a rational, scientific
manner in order to identify critical control points and to establish critical
limits and monitoring procedures. A vital aspect of the establishment's
responsibility is to establish and maintain records that document adherence to
the critical limits that relate to the identified critical control points, thus
resulting in continuous self-inspection. Secondly, a HACCP system allows the
regulatory agency to more comprehensively determine an establishment's level of
compliance. A food establishment's use of HACCP requires development of a plan
to prepare safe food. This plan must be shared with the regulatory agency
because it must have access to CCP monitoring records and other data necessary
to verify that the HACCP plan is working. Using conventional inspection
techniques, an agency can only determine conditions during the time of
inspection which provide a "snapshot" of conditions at the moment of the
inspection. However, by adopting a HACCP approach, both current and past
conditions can be determined. When regulatory agencies review HACCP records,
they have, in effect, a look back through time. Therefore, the regulatory agency
can better ensure that processes are under control.
Traditional inspection is relatively resource-intensive and inefficient and
is reactive rather than preventive compared to the HACCP approach for ensuring
food safety. Regulatory agencies are challenged to find new approaches to food
safety that enable them to become more focused and efficient and to minimize
costs wherever possible. Thus, the advantages of HACCP-based inspections are
becoming increasingly acknowledged by the regulatory community.
Examples of the successful implementation of HACCP by food establishments may
be found throughout the food industry. During the past several years, FDA and a
number of state and local jurisdictions have worked with two national voluntary
pilot projects for retail food stores and restaurants. These projects involved
more than 20 food establishments and demonstrated that HACCP is a viable and
practical option to improve food safety. FDA believes that HACCP concepts have
matured to the point at which they can be formally implemented for all food
products on an industry-wide basis.
2. HACCP PRINCIPLES
(A) Background of NACMCF
Established in 1988, the National Advisory Committee on Microbiological
Criteria for Foods (NACMCF) is an advisory committee chartered under the U.S.
Department of Agriculture (USDA) and comprised of participants from the USDA
(Food Safety and Inspection Service), Department of Health and Human Services
(U.S. Food and Drug Administration and the Centers for Disease Control and
Prevention), the Department of Commerce (National Marine Fisheries Service), the
Department of Defense (Office of the Army Surgeon General), academia, industry
and state employees. NACMCF provides guidance and recommendations to the
Secretary of Agriculture and the Secretary of Health and Human Services
regarding the microbiological safety of foods.
(B) Development of HACCP Principles
In November 1992, NACMCF defined seven widely accepted HACCP principles that
were to be considered when developing a HACCP plan. In 1997, the NACMCF
reconvened the HCCP Working Group to review the Committee's November 1992 HACCP
document and to compare it to current HACCP guidance prepared by the CODEX
Committee on Food Hygiene. From this committee, HACCP was defined as a
systematic approach identification, and
control of food safety hazards based on the following seven principles:
Principle 1: Conduct a hazard analysis.
Principle 2: Determine the
critical control points (CCPs).
Principle 3: Establish critical limits.
Principle 4: Establish monitoring procedures.
Principle 5: Establish
Principle 6: Establish verification procedures.
Principle 7: Establish record-keeping and documentation procedures.
PRINCIPLE #1: HAZARD ANALYSIS
The hazard analysis process accomplishes three purposes:
- Hazards of significance are identified;
- The hazard analysis provides a risk basis for selecting likely
- Identified hazards can be used to develop preventive measures for a
process or product to ensure or improve food safety.
Before beginning to develop a HACCP plan, a team should be assembled that is
familiar with the overall food operation and the specific production processes
to be included in the plan. The team's goal and each member's responsibilities
in reaching that goal must be clearly defined.
The first step in the development of a HACCP plan for a food operation is
identification of hazards associated with the product. A hazard may be a
biological, chemical, or physical property that can cause a food to be unsafe.
The analysis of hazards requires the assessment of two factors with respect to
any identified hazard, i.e., the likelihood that the hazard will occur and the
severity if it does occur. Hazard analysis also involves establishment of
preventive measures for control. Hazards that involve low risk and that are not
likely to occur need not be considered for the purposes of HACCP.
To be effectively addressed, hazards must be such that their prevention,
elimination, or reduction to acceptable levels is attained.
Numerous issues have to be considered during hazard analysis. These relate to
factors such as ingredients, processing, distribution, and the intended use of
the product. These issues include whether a food contains sensitive ingredients
that can create microbiological, chemical, or physical hazards; or whether
sanitation practices that are used can introduce these hazards to the food that
is being prepared or processed. An example is whether the finished food will be
heated by the consumer, if it is consumed off the premises. Even factors beyond
the immediate control of the food establishment, such as how the food will be
treated if taken out by the consumer and how it will be consumed, must be
considered because these factors could influence how food should be prepared or
processed in the establishment.

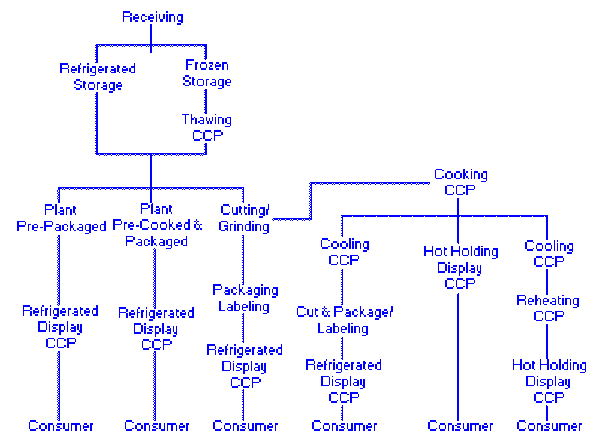

(b) Flow Diagram
Consequently, a flow diagram that delineates the steps in the process from
receipt to sale or service forms the foundation for applying the seven
principles. The significant hazards associated with each step in the flow
diagram should be listed along with preventative measures proposed to control
the hazards. This tabulation will be used under Principle 2 to determine the
CCPs. The flow diagram should be constructed by a HACCP team that has
knowledge and expertise on the product, process, and the likely hazards. Each
step in a process should be identified and observed to accurately construct the
flow diagram. Some examples of flow diagrams are found at the end of this
(c) Biological Hazards
Foodborne biological hazards include bacterial, viral, and parasitic
organisms. These organisms are commonly associated with humans and with raw
products entering the food establishment. Many of these pathogens occur
naturally in the environment where foods are grown. Most are killed or
inactivated by adequate cooking and numbers are kept to a minimum by adequate
cooling during distribution and storage.
Bacterial pathogens comprise the majority of reported foodborne disease
outbreaks and cases. A certain level of the pathogens can be expected with some
raw foods. Temperature abuse, such as improper hot or cold holding temperatures,
can significantly magnify this number. Cooked food which has been subject to
cross-contamination with pathogens often provides a fertile medium for their
rapid and progressive growth.
Enteric viruses can be foodborne, waterborne, or transmitted from a person or
from animals. Unlike bacteria, a virus cannot multiply outside of a living cell.
Hepatitis A and Norwalk viruses are examples of viral hazards associated with
Parasites are most often animal host-specific and can include humans in their
life cycles. Parasitic infections are commonly associated with undercooking meat
products or cross contamination of ready-to-eat food. Fishborne parasites in
products that are intended to be eaten raw, marinated, or partially cooked can
be killed by effective freezing techniques.
The following table provides an assessment of severity of the biological
hazards which may be associated with food being prepared, served, or sold in
TABLE 1. Hazardous Microorganisms and Parasites
Grouped on the Basis of Risk Severitya
Clostridium botulinum types A, B, E, and F
Salmonella Typhi; paratyphi A, B
Hepatitis A and
Brucella abortus; B. suis
Vibrio cholerae 01
Moderate Hazards: Potentially Extensive Spreadb
Enterovirulent Escherichia coli (EEC)
Norwalk virus group
Moderate Hazards: Limited Spread
a Adapted from International Commission on Microbiological
Specifications for Food (ICMSF) (1986). Used with permission, "HACCP Principles
and Applications", Pierson and Corlett, Eds. 1992. Chapman & Hall, New York,
b Although classified as moderate hazards, complications and
sequelae may be severe in certain susceptible populations.
(d) Chemical Hazards
Chemical hazards in foods should be considered during a hazard analysis.
Chemical contaminants may be naturally occurring or may be added during the
processing of food. Harmful chemicals at very high levels have been associated
with acute cases of foodborne illnesses and can be responsible for chronic
illness at lower levels.
The following table provides some examples of chemical hazards found within
the naturally occurring and added chemical categories. The Code of Federal
Regulations, Title 21, provides guidance on naturally occurring toxic substances
and allowable limits for many of the chemicals added during processing (food
additives). The FDA Compliance Policy Guidelines also provide information on
other naturally occurring chemicals.
Table 2. Types of Chemical Hazards and
Naturally Occurring Chemicals
Mycotoxins (e.g., aflatoxin) from mold
Scombrotoxin (histamine) from
Ciguatoxin from marine dinoflagellates
Shellfish toxins (from marine
Paralytic shellfish poisoning (PSP)
shellfish poisoning (DSP)
Neurotoxic shellfish poisoning (NSP)
shellfish poisoning (ASP)
Pesticides, fungicides, fertilizers,
insecticides, antibiotics and growth hormones
Toxic elements and compounds:
zinc, arsenic, mercury, and cyanide
a Used with permission, "HACCP Principles and Applications",
Pierson and Corlett, Eds. 1992. Chapman & Hall, New York, NY and adapted.
Direct - allowable limits under
Preservatives (nitrite and sulfiting agents)
Nutritional additives (niacin)
Secondary direct and indirect
Chemicals used in establishments
(e.g., lubricants, cleaners, sanitizers, cleaning compounds, coatings, and
Poisonous or toxic chemicals intentionally added (sabotage)
(e) Food Allergens
Each year the Food & Drug Administration (FDA) receives reports of
consumers who experienced adverse reactions following exposure to an allergenic
substance in foods. Food allergies are abnormal responses of the immune system,
especially involving the production of allergen-specific IgE antibodies, to
naturally occurring proteins in certain foods that most individuals can eat
safely. Frequently such reactions occur because the presence of the allergenic
substances in the foods is not declared on the food label.
To combat this problem, the agency issued a letter titled "Notice to
Manufacturers," dated June 10, 1996, which addressed labeling issues and Good
Manufacturing Practices (GMPs). This letter is available on FDA's .
FDA believes there is scientific consensus that the following foods can cause
serious allergic reactions in some individuals and account for more than 90% of
all food allergies.
Current FDA policy, as reflected in FDA Compliance Policy Guide (CPG) 555.250
with regard to direct addition as ingredients or sub-ingredients, is:
Products which contain an allergenic ingredient by design must comply with 21 U.S.C.
343(i)(2). Where substances that are, bear, or contain allergens are added
as ingredients or sub-ingredients (including rework), the Federal Food, Drug,
and Cosmetic Act (the Act) requires a complete listing of the food ingredients, provide that incidental additives, such as
processing aids, which are present in a food at insignificant levels and that do
not have a technical or functional effect in the finished food are exempt from
ingredient declaration. Some manufacturers have asserted to FDA that some
allergens used as processing aids qualify for this exemption. FDA, however, does not consider food allergens eligible for this exemption. Evidence
indicates that some food allergens can cause serious reactions in sensitive
individuals upon ingestion of very small amounts; therefore, the presence of an
allergen must be declared in accordance with (689
Allergens may be unintentionally added to food as a result of practices such
as improper rework addition, product carry-over due to use of common equipment
and production sequencing, or the presence of an allergenic product above
exposed product lines. Such practices with respect to allergenic substances can
be insanitary conditions that may render the food injurious to health and
adulterate the product under section 402(a)(4) of
the Act [21 U.S.C. 342(a)(4)].
(f) Physical Hazards
Illness and injury can result from hard foreign objects in food. These
physical hazards can result from contamination and/or poor procedures at many
points in the food chain from harvest to consumer, including those within the
As establishments develop their HACCP programs, the following table can be
used to further identify sources of potential physical risks to the food being
prepared, served, or sold.
Table 3. Main Materials of Concern as Physical Hazards and Common
|Cuts, bleeding; may require surgery to find or remove
||Bottles, jars, light, utensils, gauge covers
||Cuts, infection, choking; may require surgery to remove
||Fields, pallets, boxes, buildings
|Stones, metal fragments
||Choking, broken teeth Cuts, infection; may require surgery to
||Fields, buildings, machinery, fields, wire, employees
||Choking; long-term if asbestos
||Fields, improper plant processing
||Choking, cuts, infection; may require surgery to remove
||Fields, plant packaging materials, pallets, employees
||Choking, cuts, broken teeth; may require surgery to remove
a Adapted from Corlett (1991).
b Used with permission, "HACCP Principles and Applications",
Pierson and Corlett, Eds. 1992. Chapman & Hall, New York,
(f) Determining Level of Risk
The potential significance or risk of each hazard should be assessed by
considering its likelihood of occurrence and severity. The estimate of risk for
a hazard occurring is based upon a combination of experience, epidemiological
data, and information in the technical literature. Severity is the degree of
seriousness of the consequences of a hazard if it were to become an actuality.
Hazard identification in conjunction with risk estimation provides a rational
basis for determining which hazards are significant and must be addressed in the
HACCP plan. To determine risk during the hazard analysis, safety concerns must
be differentiated from quality concerns. A food safety hazard is a biological,
chemical, or physical property that may cause a food to be unsafe. There may be
differences of opinion, even among experts, as to the risk of a hazard. The food
establishment must rely upon the expert opinion published in peer reviewed
literature or experts who actively assist in the development of the HACCP plan.
The hazards must at least include those that are commonly associated with a
specific product. If a hazard that is commonly associated is dismissed from the
plan, the basis for rejecting it must be clearly stated in the hazard analysis
so that it is understood and agreed to by the regulatory authority reviewing the
(g) Hazard Analysis Process
This point in hazard analysis consists of asking a series of questions which
are appropriate to each step in the flow diagram. The hazard analysis should
question the effect of a variety of factors upon the safety of the food.
- Does the food contain any sensitive ingredients that are likely to
present microbiological hazards (e.g., Salmonella, Staphylococcus aureus), chemical hazards (e.g.,
aflatoxin, antibiotic, or pesticide residues) or physical hazards (stones,
glass, bone, metal)?
- Intrinsic factors of food
Physical characteristics and
composition (e.g., pH, type of acids, fermentable carbohydrate, water
activity, preservatives) of the food during and after preparation can cause or
prevent a hazard.
- Which intrinsic factors of the food must be controlled in order to
ensure food safety?
- Does the food permit survival or multiplication of pathogens and/or
toxin formation in the food before or during preparation?
- Will the food permit survival or multiplication of pathogens and/or
toxin formation during subsequent steps of preparation, storage, or consumer
- Are there other similar products in the market place? What has been the
safety record for these products?
- Procedures used for preparation/processing
- Does the preparation procedure or process include a controllable step
that destroys pathogens or their toxins? Consider both vegetative cells and
- Is the product subject to recontamination between the preparation step
(e.g., cooking) and packaging?
- Microbial Content of the Food
- Is the food commercially sterile (i.e., low acid canned food)?
- Is it likely that the food will contain viable sporeforming or
- What is the normal microbial content of the food stored under proper
- Does the microbial population change during the time the food is stored
- Does that change in microbial population alter the safety of the
- Facility design
- Does the layout of the facility provide an adequate separation of raw
materials from ready-to-eat foods?
- Is positive air pressure maintained in product packaging areas? Is this
essential for product safety?
- Is the traffic pattern for people and moving equipment a potentially
significant source of contamination?
- Equipment design
- Will the equipment provide the time/temperature control that is
necessary for safe food?
- Is the equipment properly sized for the volume of food that will be
- Can the equipment be sufficiently controlled so that the variation in
performance will be within the tolerances required to produce a safe
- Is the equipment reliable or is it prone to frequent
- Is the equipment designed so that it can be cleaned and
- Is there a chance for product contamination with hazardous substances,
- What product safety devices such as time/temperature integrators are
used to enhance consumer safety?
- Does the method of packaging affect the multiplication of microbial
pathogens and/or the formation of toxins?
- Is the packaging material resistant to damage, thereby preventing the
entrance of microbial contamination?
- Is the package clearly labeled "Keep Refrigerated" if this is required
- Does the package include instructions for the safe handling and
preparation of the food by the consumer?
- Are tamper-evident packaging features used?
- Is each package legibly and accurately coded to indicate production
- Does each package contain the proper label?
- Can the sanitation practices that are employed impact upon the safety of
the food that is being prepared?
- Can the facility be cleaned and sanitized to permit the safe handling of
- Is it possible to provide sanitary conditions consistently and
adequately to ensure safe foods?
- Employee health, hygiene, and education
- Can employee health or personal hygiene practices impact the safety of
the food being prepared?
- Do the employees understand the food preparation process and the factors
they must control to ensure safe foods?
- Will the employees inform management of a problem which could impact
- Conditions of storage between packaging and the consumer
- What is the likelihood that the food will be improperly stored at the
- Would storage at improper temperatures lead to a microbiologically
- Intended use
- Will the food be heated by the consumer?
- Will there likely be leftovers?
- Intended consumer
- Is the food intended for the general public, i.e., a population that
does not have an increased risk of becoming ill.
- Is the food intended for consumption by a population with increased
susceptibility to illness (e.g., infants, the elderly, the infirm, and
(h) Developing Preventive Measures
The preventive measures procedure identifies the steps in the process at
which hazards can be controlled.
After identifying the hazards the food establishment must then consider what
preventive measures, if any, can be applied for each hazard. Preventive measures
are physical, chemical, or other factors that can be used to control an
identified health hazard. More than one preventive measure may be required to
control a specific hazard and more than one hazard may be controlled by a
specified preventive measure.
For example, if a HACCP team were to conduct a hazard analysis for the
preparation of hamburgers from frozen beef patties, enteric pathogens on the
incoming raw meat would be identified as a potential hazard. Cooking is a
preventive measure which can be used to eliminate this hazard. Thus, cooking,
the preventive measure, would be listed along with the hazard (i.e., enteric
pathogens) as follows:
||Cooking sufficiently to kill enteric pathogens
PRINCIPLE #2: IDENTIFY THE CRITICAL CONTROL POINTS (CCP) IN
A CCP is a point, step, or procedure at which control can be applied and a
food safety hazard can be prevented, eliminated, or reduced to acceptable
levels. Points in food preparation that may be CCPs include cooking, chilling,
specific sanitation procedures, product formulation control, prevention of cross
contamination, and certain aspects of employee and environmental hygiene. For
example, cooking that must occur at a specific temperature and for a specified
time in order to destroy microbiological pathogens is a critical control point.
Likewise, refrigeration or the adjustment of a food's pH to a level required to
prevent hazardous microorganisms from multiplying or toxins from forming are
Many points in food preparation may be considered control points, but very
few are actually critical control points. A control point is any point, step, or
procedure at which biological, physical, or chemical factors can be controlled.
Concerns that do not impact food safety may be addressed at control points;
however, since these control points do not relate to food safety, they are not
included in the HACCP plan.
Different facilities preparing the same food can differ in the risk of
hazards and the points, steps, or procedures which are CCPs. This can be due to
differences in each facility such as layout, equipment, selection of
ingredients, or the process that is used. Generic HACCP plans can serve as
useful guides; however, it is essential that the unique conditions within each
facility be considered during the development of a HACCP plan.
CCPs must be carefully developed and documented. In addition, they must be
used only for purposes of product safety. The following decision tree is helpful
in verifying which of the food preparation steps should be designated as
PRINCIPLE #3: ESTABLISH CRITICAL LIMITS FOR PREVENTIVE
Associated with Each Identified Critical Control
This step involves establishing a criterion that must be met for each
preventive measure associated with a CCP. Critical limits can be thought of as
boundaries of safety for each CCP and may be set for preventive measures such as
temperature, time, physical dimensions, aw, pH, and available
chlorine. Critical limits may be derived from sources such as regulatory
standards and guidelines, scientific literature, experimental studies, and
consultation with experts.
|Criteria Most Frequently Used for Critical
(a) Critical Limit
A critical limit is defined as a criterion that must be met for each
preventive measure associated with a CCP. Each CCP will have one or more
preventive measures that must be properly controlled to ensure prevention,
elimination, or reduction of hazards to acceptable levels. The food
establishment is responsible for using competent authorities to validate that
the critical limits chosen will control the identified hazard.
(b) Target Level
In some cases, variables involved in food preparation may require certain
target levels to ensure that critical limits are not exceeded. For example, a
preventive measure and critical limit may be an internal product temperature of
71°C (160°F) during one stage of a process. The oven temperature, however, may
be 71 ±3°C (160±°F); thus an oven target temperature would have to be greater
than 74°C (165°F) so that no product receives a cook of less than 71°C
(c) Application Example
An example for Principle 3 is the cooking of beef patties. The process should
be designed to eliminate the most heat-resistant vegetative pathogen which could
reasonably be expected to be in the product. Criteria may be required for
factors such as temperature, time, and meat patty thickness. Technical
development of the appropriate critical limits requires accurate information on
the probable maximum numbers of these microorganisms in the meat and their heat
resistance. The relationship between the CCP and its critical limits for the
meat patty example is shown below:
||Minimum internal temperature of patty: 68°C / 155°F
temperature: ______°C / ______°F
Time; rate of
(e.g., conveyer belt speed in): cm/min: ______ ft/min
Patty thickness: ______ cm / ____in
Patty composition: e.g.,
% Fat, % Filler
Oven humidity: ______% RH
PRINCIPLE #4: ESTABLISH PROCEDURES TO MONITOR
(a) Observations and Measurements
Monitoring is a planned sequence
of observations or measurements to assess whether a CCP is under control and to
produce an accurate record for use in future verification procedures. There are
three main purposes for monitoring:
- It tracks the system's operation so that a trend toward a loss of control
can be recognized and corrective action can be taken to bring the process back
into control before a deviation occurs;
- It indicates when loss of control and a deviation have actually occurred,
and corrective action must be taken; and
- It provides written documentation for use in verification of the HACCP
|Examples of Measurements for Monitoring
(b) Continuous Monitoring
An unsafe food may result if a process is
not properly controlled and a deviation occurs. Because of the potentially
serious consequences of a critical defect, monitoring procedures must be
Continuous monitoring is always preferred when feasible and continuous
monitoring is possible with many types of physical and chemical methods. For
example, the temperature and time for an institutional cook-chill operation can
be recorded continuously on temperature recording charts. If the temperature
falls below the scheduled temperature or the time is insufficient, as recorded
on the chart, the batch must be recorded as a process deviation and reprocessed
Instrumentation used by the food establishment for measuring critical limits
must be carefully calibrated for accuracy. Records of calibrations must be
maintained as a part of the HACCP plan documentation.
(c) Monitoring Procedures
When it is not possible to monitor a critical limit on a continuous basis, it
is necessary to establish that the monitoring interval will be reliable enough
to indicate that the hazard is under control. Statistically designed data
collection or sampling systems lend themselves to this purpose. When statistical
process control is used, it is important to recognize that violations of
critical limits must not occur. For example, when a temperature of 68°C (155°F)
or higher is required for product safety, the minimum temperature of the product
may be set at a target that is above this temperature to compensate for
Most monitoring procedures for CCPs will need to be done rapidly because the
time frame between food preparation and consumption does not allow for lengthy
analytical testing. Microbiological testing is seldom effective for monitoring
CCPs because of its time-consuming nature. Therefore, physical and chemical
measurements are preferred because they may be done rapidly and can indicate
whether microbiological control is occurring.
Assignment of responsibility for monitoring is an important consideration for
each CCP within the operation. Specific assignments will depend on the number of
CCPs, preventive measures, and the complexity of monitoring. The most
appropriate employees for such assignments are often directly associated with
the operation, such as the person in charge of the food establishment, chefs,
and departmental supervisors.
Individuals monitoring CCPs must be trained in the monitoring technique,
completely understand the purpose and importance of monitoring, and be unbiased
in monitoring and reporting so that monitoring is accurately recorded. The
designated individuals must have ready access to the CCP being monitored and to
the calibrated instrumentation designated in the HACCP plan.
The person responsible for monitoring must also record a food operation or
product that does not meet critical limits and ensure that immediate corrective
action can be taken. All records and documents associated with CCP monitoring
must be signed or initialed by the person doing the monitoring.
Random checks may be useful in supplementing the monitoring of certain CCPs.
They may be used to check incoming ingredients, serve as a check for compliance
where ingredients are recertified as meeting certain standards, and assess
factors such as equipment. Random checks are also advisable for monitoring
environmental factors such as airborne contamination, and cleaning and
With some foods containing microbiologically sensitive ingredients, there may
not be an alternative to microbiological testing. However, it is important to
recognize that a sampling frequency which is adequate for reliable detection of
low levels of pathogens is seldom possible because of the large number of
samples needed. For this reason, microbiological testing has limitations in a
HACCP system, but is valuable as a means of establishing and verifying the
effectiveness of control at CCPs (such as through challenge tests, random
testing, or testing that focuses on isolating the source of a
PRINCIPLE #5: ESTABLISH THE CORRECTIVE ACTION TO BE TAKEN WHEN
MONITORING SHOWS THAT A CRITICAL LIMIT HAD BEEN EXCEEDED
(a) Purpose of Corrective Action Plan
Although the HACCP system is intended to prevent deviations from occurring,
perfection is rarely, if ever, achievable. Thus, there must be a corrective
action plan in place to:
- Determine the disposition of any food that was produced when a deviation
- Correct the cause of the deviation and ensure that the critical control
point is under control; and
- Maintain records of corrective actions.
(b) Aspects of Corrective Action Plan
Because of the variations in CCPs for different food operations and the
diversity of possible deviations, specific corrective action plans must be
developed for each CCP. The actions must demonstrate that the CCP has been
brought under control. Individuals who have a thorough understanding of the
operation, product, and HACCP plan must be assigned responsibility for taking
corrective action. Corrective action procedures must be documented in the HACCP
Food establishments covered by the Food Code will usually be concerned with
food which has a limited shelf-life and distribution. Primary focus for the
application of this HACCP principle will be on the correction of the procedure
or condition which led to the noncompliance. More frequent monitoring may be
temporarily required to ensure that the deviation from the established critical
limit is not continuing when the operation is resumed.
If a deviation should occur in food operations that are traditionally
considered food processing operations, such as cook-chill, curing and smoking,
or reduced oxygen packaging, the food establishment must place the product on
hold pending completion of appropriate corrective actions and analyses. As
appropriate, scientific experts and regulatory agencies must be consulted
regarding additional testing or disposition of the product. Identification of
deviant lots and corrective actions taken to ensure safety of these lots must be
noted in the HACCP record. This record must remain on file for a reasonable
period after the expiration date or expected shelf life of the
PRINCIPLE #6: ESTABLISH PROCEDURES TO VERIFY THAT THE HACCP
SYSTEM IS WORKING
(a) Establishing Verification Procedures
- The first phase of the process is the scientific or technical verification
that critical limits at CCPs are satisfactory. This can be complex and may
require intensive involvement of highly skilled professionals from a variety
of disciplines capable of doing focused studies and analyses. A review of the
critical limits is necessary to verify that the limits are adequate to control
the hazards that are likely to occur.
- The second phase of verification ensures that the facility's HACCP plan is
functioning effectively. A functioning HACCP system requires little
end-product sampling, since appropriate safeguards are built in early in the
food preparation. Therefore, rather than relying on end-product sampling, food
establishments must rely on frequent reviews of their HACCP plan, verification
that the HACCP plan is being correctly followed, review of CCP records, and
determinations that appropriate risk management decisions and product
dispositions are made when preparation deviations occur.
- The third phase consists of documented periodic revalidations, independent
of audits or other verification procedures, that must be performed to ensure
the accuracy of the HACCP plan. Revalidations are performed by a HACCP team on
a regular basis and/or whenever significant product, preparation, or packaging
changes require modification of the HACCP plan. The revalidation includes a
documented on-site review and verification of all flow diagrams and CCPs in
the HACCP plan. The HACCP team modifies the HACCP plan as necessary.
- The fourth phase of verification deals with the regulatory agency's
responsibility and actions to ensure that the establishment's HACCP system is
(b) The following are some examples of HACCP plan verification activities
which should be used as a part of a HACCP program:
(c) Training and Knowledge
- Verification procedures may include:
- Establishment of appropriate verification inspection
- Review of the HACCP plan;
- Review of CCP records;
- Review of deviations and their resolution, including the disposition of
- Visual inspections of operations to observe if CCPs are under
- Random sample collection and analysis;
- Review of critical limits to verify that they are adequate to control
- Review of written record of verification inspections which certifies
compliance with the HACCP plan or deviations from the plan and the
corrective actions taken;
- Validation of HACCP plan, including on-site review and verification of
flow diagrams and CCPs; and
- Review of modifications of the HACCP plan.
- Verification inspections should be conducted:
- Routinely or on an unannounced basis, to ensure that selected CCPs are
- When it is determined that intensive coverage of a specific food is
needed because of new information concerning food safety;
- When foods prepared at the establishment have been implicated as a
vehicle of foodborne disease;
- When requested on a consultative basis and resources allow accommodating
- When established criteria have not been met; and
- To verify that changes have been implemented correctly after a HACCP
plan has been modified.
- Verification reports should include information about:
- Existence of a HACCP plan and the person(s) responsible for
administering and updating the HACCP plan;
- The status of records associated with CCP monitoring;
- Direct monitoring data of the CCP while in operation; Certification that
monitoring equipment is properly calibrated and in working order;
- Deviations and corrective actions;
- Any samples analyzed to verify that CCPs are under control. Analyses may
involve physical, chemical, microbiological, or organoleptic
- Modifications to the HACCP plan; and
- Training and knowledge of individuals responsible for monitoring
Focus and Objective
Training and knowledge are very important in making HACCP successful in any
food establishment. HACCP works best when it is integrated into each
employee's normal duties rather than added as something extra.
The depth and breadth of training will depend on the particular employee's
responsibilities within the establishment. Management or supervisory
individuals will need a deeper understanding of the HACCP process because they
are responsible for proper plan implementation and routine monitoring of CCPs
such as product cooking temperatures and cooling times. The training plan
should be specific to the establishment's operation rather than attempt to
develop HACCP expertise for broad application.
The food employee's training should provide an overview of HACCP's
prevention philosophy while focusing on the specifics of the employee's normal
functions. The CCPs such as proper handwashing and use of utensils or gloves
for working with ready-to-eat food should be stressed. The use of recipes or
Standard Operating Procedures (SOPs) which include the critical limits of
cooking times and temperatures, with a final cooking time and temperature
measurement step, should be included.
For all employees, the fundamental training goal should be to make them
proficient in the specific tasks which the HACCP plan requires them to
perform. This includes the development of a level of competency in their
decision making about the implementation of proper corrective actions when
monitoring reveals violation of the critical limit. The training should also
include the proper completion and maintenance of any records specified in the
Training reinforcement is also needed for continued motivation of the food
establishment employees. Some examples might include:
- A HACCP video training program such as the Pennsylvania Department of
Environmental Regulation's Foodborne Illness: It's Your Business;
- Changing reminders about HACCP critical limits such as "HANDWASHING PAYS
BIG DIVIDENDS" printed on employee's time cards or checks; and
- Work station reminders such as pictorials on how and when to take food
Every time there is a change in a product or food operation within the
establishment, the HACCP training needs should be evaluated. For example, when
a food establishment substitutes a frozen seafood product for a fresh one,
proper thawing critical limits should be taught and then monitored for
implementation. The employees should be made sensitive to how the changes will
affect food safety
The HACCP plan should include a feedback loop for employees to suggest what
additional training is needed. All employees should be made a part of the
continuous food safety improvement cycle because the old statement is very
true, "The customer's health is in their hands". This helps maintain their
active awareness and involvement in the importance of each job to the safety
of the food provided by their establishment.
HACCP PRINCIPLE #7: ESTABLISH EFFECTIVE RECORD KEEPING SYSTEMS
THAT DOCUMENT THE HACCP SYSTEM
(a) Written HACCP Plan
This principle requires the preparation and maintenance of a written HACCP
plan by the food establishment. The plan must detail the hazards of each
individual or categorical product covered by the plan. It must clearly identify
the CCPs and critical limits for each CCP. CCP monitoring and record keeping
procedures must be shown in the establishment's HACCP plan. HACCP plan
implementation strategy should be provided as a part of the food establishment's
(b) Record Keeping
The principle requires the maintenance of records generated during the
operation of the plan. The record keeping associated with HACCP procedures
ultimately makes the system work. One conclusion of a study of HACCP performed
by the U.S. Department of Commerce is that correcting problems without record
keeping almost guarantees that problems will recur. The requirement to record
events at CCPs on a regular basis ensures that preventive monitoring is
occurring in a systematic way. Unusual occurrences that are discovered as CCPs
are monitored or that otherwise come to light must be corrected and recorded
immediately with notation of the corrective action taken.
The level of sophistication of the record keeping necessary for the food
establishment is dependent on the complexity of the food preparation operation.
A sous vidé process or cook-chill operation for a large institution would
require more record keeping than a limited menu cook-serve operation. The
simplest effective record keeping system that lends itself well to integration
within the existing operation is best.
(c) Contents of the Plan and Records
The approved HACCP plan and associated records must be on file at the food
establishment. Generally, the following are examples of documents that can be
included in the total HACCP system:
- Listing of the HACCP team and assigned responsibilities;
- Description of the product and its intended use;
- Flow diagram food preparation indicating CCPs;
- Hazards associated with each CCP and preventive measures;
- Critical limits;
- Monitoring system;
- Corrective action plans for deviations from critical limits;
- Record keeping procedures; and
- Procedures for verification of HACCP system.
(d) Format for HACCP Information
In addition to listing the HACCP team, product description and uses, and
providing a flow diagram, other information in the HACCP plan can be tabulated
||Monitoring Procedures Frequency Person(s) Responsible
||Corrective Action(s) Person(s) Responsible
||Verification Procedures/Person(s) Responsible
The following chart is an example of a HACCP plan documentation for a product
cooling step in a retail level food establishment.
||Critical Control Point #8
|Criteria or Critical Limit
||Cool Foods Rapidly in Small Quantities to
||Department Personnel Break Down Food into Small Quantities and Monitor
The Cooling Process
||Modify Cooling Procedures/ Discard
||Deli Cooking/Cooling Log
|HACCP System Verification
||Deli Safety Audit by Store Manager
(e) Examples of Records obtained during the operation of the plan:
- Supplier certification documenting compliance with establishment's
- Establishment audit records verifying supplier compliance.
- Storage temperature record for temperature-sensitive
- Storage time records of limited shelf-life
- Records from all monitored CCPs.
- Records verifying the continued adequacy of the food preparation
- Records indicating compliance with specifications of packaging
- Records indicating compliance with sealing
- Finished product
- Sufficient data and records to establish the efficacy of barriers in
maintaining product safety.
- Sufficient data and records establishing the safe shelf-life of the
product; if age of product can affect safety.
- Documentation of the adequacy of the HACCP procedures from an authority
knowledgeable of the hazards involved and necessary
- Storage and distribution
- Temperature records.
- Records showing no product shipped after shelf life date on
- Deviation and corrective action
- Validation records and modification to the HACCP plan indicating
approved revisions and changes in ingredients, formulations, preparation,
packaging, and distribution control, as needed.
- Employee training
- Records indicating that food employees responsible for implementation of
the HACCP plan understand the hazards, controls, and procedures. Refer to
the discussion regarding Training and Knowledge under Principle
HACCP is a systematic approach to food safety which will dramatically improve
the level of food safety. The NACMCF has developed the seven HACCP principles
discussed within this Annex. The FDA recommends the implementation of a HACCP
system throughout the food industry using these NACMCF recommendations.
An effective national food safety program from food production to consumer is
enhanced by the implementation of HACCP. The statistics from foodborne
surveillance reveal that retail level food establishments can have a significant
impact on the health of consumers.
Implementation of HACCP programs by the establishments will profoundly
enhance their role in the protection of public health beyond the traditional
emphasis on facility and equipment design and maintenance and adherence to the
principles of sanitation, good manufacturing, and food preparation practices.
The education and training of all personnel are critical to the success and
effectiveness of any HACCP program. The Food Code stresses the application to
HACCP principles and the knowledge and responsibilities of establishment
management and employees.
Specific HACCP plans for the products prepared and sold by the retail food
establishment should be developed and implemented for optimal food safety
management. HACCP systems are recommended for use as a tool for regulatory
inspections. The regulatory official should incorporate procedures in the
inspection process that ensure record reviews and active monitoring.
Because the retail food establishment industry is composed of large, small,
chain, and independent establishments, the level of food safety expertise varies
widely and is not necessarily linked to size or affiliation. Regardless of the
size and sophistication of the establishment, a HACCP plan for safe food
preparation and sales needs to be designed, implemented, and verified.
Studies have shown that a significant level of illness and mortality from
foodborne disease in institutional feeding operations such as hospitals, nursing
homes, and prisons is related to preventable causes. For populations that may be
more vulnerable to foodborne disease, FDA and the NACMCF recommend that HACCP
systems be immediately implemented by establishments and institutions preparing
foods for these susceptible individuals.
Food processing operations at retail food establishments such as reduced
oxygen packaging and curing and smoking under the Food Code are required to
develop and implement a HACCP plan for that part of the operation. Additionally,
any establishment seeking a variance from the requirements of the Code must
submit a HACCP plan. The HACCP Annex can serve to guide these establishments in
Food establishments have the primary responsibility for food safety. The
development and implementation of HACCP programs is a reliable and responsible
step to help ensure the safety of food offered for consumption.
Much of this HACCP Annex material is adapted from National Advisory Committee
on Microbiological Criteria for Foods, Hazard Analysis and Critical Control
Point System, adopted March 20, 1992.
Some of the charts were provided courtesy of "Overview of Biological,
Chemical, and Physical Hazards" in "HACCP Principles and Merle Pierson and Donald A. Corlett, Jr. (Eds.), 1992
p 8-28. Chapman and Hall, New York.
Bean, N.H. and P.M. Griffin 1990. Foodborne disease outbreaks in the United
States, 1973-87. J. Food Prot. 53(9):804-817.
Bjerklie, S., 1992. HACCP in your plant: What HACCP is, what it isn't and how
your operations will be affected. Meat and Poultry 38(2):14-22.
Bryan, F.L., 1990. Hazard analysis critical control point (HACCP) concept. Dairy, Food Environ. Sanitat. 10(7):416-418.
Bryan, F.L., 1990. Hazard analysis critical control point (HACCP) systems for
retail food and restaurant operations. J. Food Prot. 53(11):978-983.
Bryan, F.L., 1988. Risks associated with vehicles of foodborne pathogens and
toxins. J. Food Prot. 51(6):498-508.
Bryan, F.L., 1988. Risks of practices, procedures and processes that lead to
outbreaks of foodborne diseases. J. Food Prot. 51(8):663-673.
Bryan, F.L., P.Teufel, S. Riaz, S. Roohi, F. Quadar and Z. Malik, 1992.
Hazards and critical control points of vending operations at a railway station
and a bus station in Pakistan. J. Food Technol. 55(7):534-541.
Bryan, F.L., C.A. Bartelson, C.O. Cook, P. Fisher, J.J. Guzewich, B.J. Humm,
R.C. Swanson, and E.C.D. Todd, 1991. Procedures to Implement the Hazard
Analysis Critical Control Point System. Int. Assoc. of Milk, Food, Environ.
Sanitarians, Ames, IA, 72 pp.
Buchanan, R.L., 1990. HACCP: A re-emerging approach to food safety. Trends
in Food Science & Technology, November 1990, Elsevier Science
Corlett, D.A., Jr., 1989. Refrigerated foods and use of hazard analysis and
critical control point principles. Food Technol. 43(2):91-94.
Corlett, D.A. Jr., 1991. Regulatory verification of industrial HACCP systems.
Food Technol. 45(5):144-146.
Cox, L.J., 1989. A perspective on listeriosis. Food Technol.
Curiale, M.S., 1991. Shelf-life evaluation analysis. Dairy, Food Environ.
Educational Foundation of the National Restaurant Association, 1993.
HACCP Reference Book. Educational Foundation, Chicago, IL.
Food and Agriculture Organization of the United Nations, Report of the FAO
Technical Consultation on Food Allergies. Rome, Italy, November 13 to 14,
Food Marketing Institute, 1989. Food handler's pocket guide for food
safety and quality. Washington, DC.
Food Marketing Institute., 1989. A program to ensure food safety in the
supermarket -- the hazard analysis critical control point system.
Foster, E.M., 1989. A half-century of food microbiology. Food Technol.
Guzewich, J. J., 1987. Practical Procedures for Using the Hazard Analysis
Critical Control Point (HACCP) Approach in Food Service Establishments by
Industry and Regulatory Agencies. Lewis Publishers, Inc., Chelsea, MI.
Hefle, S.L, et al. Allergenic Foods. Critical Reviews in Food Science and
Nutrition, 36(S);S69-S89 (1996).
Kemp, S., 1991. Start a quality improvement program. North Carolina State
University, Sea Grant College Program. Raleigh, NC. Seafood Current,
International Association of Milk, Food and Environmental Sanitarians, Inc.,
1991 Procedures to implement the hazard analysis critical control point
system. Des Moines, IA.
International Commission on Microbiological Specifications for Foods, 1986. Microorganisms in Foods 2. Sampling for microbiological analysis: Principles
and specific applications. 2nd ed. University of Toronto Press, Toronto.
International Commission on Microbiological Specifications for Foods, 1989. Microorganisms in Foods 4. Application of hazard analysis and critical
control point (HACCP) system to ensure microbiological safety and quality. Blackwell Scientific Publications, Boston.
Lee, J.S., with K.S. Hilderbrand Jr., 1992. Hazard analysis & critical
control point applications to the seafood industry. ORESU-H-92-001. Oregon
Sea Grant, Oregon State University. Corvallis, OR.
Lydecker, T., 1991. How self-inspection flies: HACCP systems in airline
catering companies. Food Service Director. 15:87.
Martin, P., 1991. Hazard control. Restaurant Business, 1:256.
McIntyre, C.R. 1991. Hazard analysis critical control point (HACCP)
identification. Dairy, Food and Environ. Sanit. 11(7):357-358.
National Advisory Committee on Microbiological Criteria for Foods, 1992.
Hazard analysis and critical control point system. Int. J. Food
National Fisheries Institute, 1991. Seafood industry, hazard analysis
critical control point, HACCP, training manual. Arlington, VA.
National Food Processors Association, 1992. HACCP and total quality
management -- winning concepts for the 90's: A review. J. Food Prot. 55:459-462.
New England Fisheries Development Association, 1991. HACCP manual for
processors. 309 World Trade Center, Boston, MA 02210-2001.
Pierson, M.D. and D.A. Corlett, Jr., 1992, HACCP Principles and
Applications, Van Nostrand Reinhold, New York. 212 pp.
Pisciella, J.A., 1991. A handbook for the practical application of the
hazard analysis critical control point approach to food service establishment
inspection. Central Atlantic States Association of Food and Drug Officials,
c/o William Kinder, Pennsylvania Department of Agriculture, PO Box 300,
Creamery, PA 19430.
Pisciella, J.A., 1991. Overcoming the barriers to HACCP in restaurants. Food
Prot. Inside Rpt. July-August:2A.
Price, R. J. (Ed.), 1985. Seafood retailing manual, 3rd ed. University
of California, Sea Grant Extension Program, Davis, CA.
Price, R. J., 1990. Retail seafood cross-contamination. UCSGEP 90-6.
University of California, Food Science & Technology Department. Davis, CA
Price, R. J., 1990. Retail seafood temperature control. UCSGEP 90-5.
University of California, Food Science & Technology Department, Davis, CA
Price, R.J., P.D. Tom, and K.E. Stevenson, 1993. Ensuring food safety -- The
HACCP way. University of California, Food Science & Technology Department,
Davis, CA 95616.
Rhodes, M.E., 1991. Educating professionals and consumers about
extended-shelf-life refrigerated foods. Food Technol. 47(4):182-183.
Sampson, H.A. Food Allergy. JAMA (278), pp. 1888-1894. 1997.
Snyder, O.P., 1991. HACCP in the retail food industry. Dairy, Food
Environ. Sanit. 11(2):73-81.
Stevenson, K.E., 1990. Implementing HACCP in the food industry. Food
Sumner, S.S., et al., 1992. Food Safety/Food Sanitation Workshop, Introduction to HACCP Procedures - Final Report (special project number
91-EFSQ-4021). Nebraska Cooperative Extension. University of Nebraska, Lincoln,
6. OTHER SOURCES OF HACCP INFORMATION
FDA CFSAN Web Page. A Free On-Line Draft, "Managing Food Safety: A HACCP
Principles Guide for Operators of Food Service, Retail Food Stores, and Other
Food Establishments at the Retail Level",
PA DEPARTMENT of ENVIRONMENTAL RESOURCES, 1992. Foodborne Illness: It's
your business (HACCP video). Division of Food Protection, Food Facilities
Section, Harrisburg, PA.
Two Typical Flow
Flow Chart 1
Flow Chart 2
